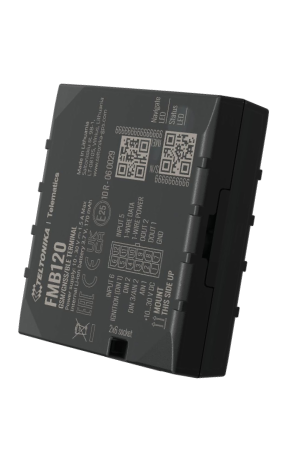

Teltonika FMB120

Teltonika FMB120

£60.00

The Teltonika FMB120 is a professional GPS tracker designed for fleet management, logistics, vehicle security, and remote monitoring applications. It integrates GNSS, GSM, and Bluetooth connectivity, and supports external sensors via digital and analog inputs/outputs. The device enables advanced features such as crash detection, remote immobilization, and optional CAN data reading. It also supports remote configuration and firmware updates via FOTA/Web platforms.

Categoría: Marca:

Descripción

Teltonika FMB120 – Professional GNSS/GSM/Bluetooth Tracker

The Teltonika FMB120 is a compact and versatile GPS tracking device designed for a wide range of professional applications, including fleet management, car rental and leasing, insurance telematics, and vehicle recovery. It combines high-performance GPS/GLONASS positioning with GSM connectivity, Bluetooth support, and multiple input/output interfaces, enabling reliable tracking and flexible integration with external systems.

⚙️ Key Features

  • GNSS/GSM/Bluetooth connectivity

  • Real-time tracking and data logging

  • Internal high-gain GNSS antenna

  • 2 Digital Inputs, 2 Digital Outputs, 1 Analog Input

  • 1-Wire interface for temperature monitoring and iButton authorization

  • Crash detection via accelerometer

  • Ignition detection via multiple sources (voltage, movement, input)

  • Remote firmware updates and configuration (FOTA/Web)

  • Bluetooth 4.0 LE for hands-free, external sensors, and data transfer

  • Sleep and deep sleep modes for power efficiency

  • Compatible with CAN adapters (LV-CAN200, ALL-CAN300)

📊 Technical Specifications



Category Details
GNSS GPS, GLONASS, Galileo, BeiDou
Receiver 33 channel GPS, -165 dBm sensitivity
Cellular GSM (2G), Quad-band 850 / 900 / 1800 / 1900 MHz
Bluetooth v4.0 LE
Data Interface GPRS Class 12 (up to 240 kbps), SMS
Inputs 2 Digital inputs, 1 Analog input
Outputs 2 Digital outputs (open collector 150 mA)
Power Supply 10–30 V DC with overvoltage protection
Internal Battery Li-Ion 170 mAh (4.2 V)
Memory 128 MB internal flash (up to 350,000 records)
Accelerometer 3-axis, for motion detection and crash analysis
1-Wire Support Up to 4 temperature sensors or iButton keys
Operating Temp. -40 °C to +85 °C
Dimensions 65 x 56.6 x 18.9 mm
Weight 63 g
Certifications CE, E-mark, RoHS

🔧 Typical Use Cases

  • Fleet vehicle tracking and route optimization

  • Driver behavior monitoring

  • Remote immobilization and theft prevention

  • Insurance risk assessment

  • Cold chain and temperature-sensitive logistics

  • Access control using iButton keys
